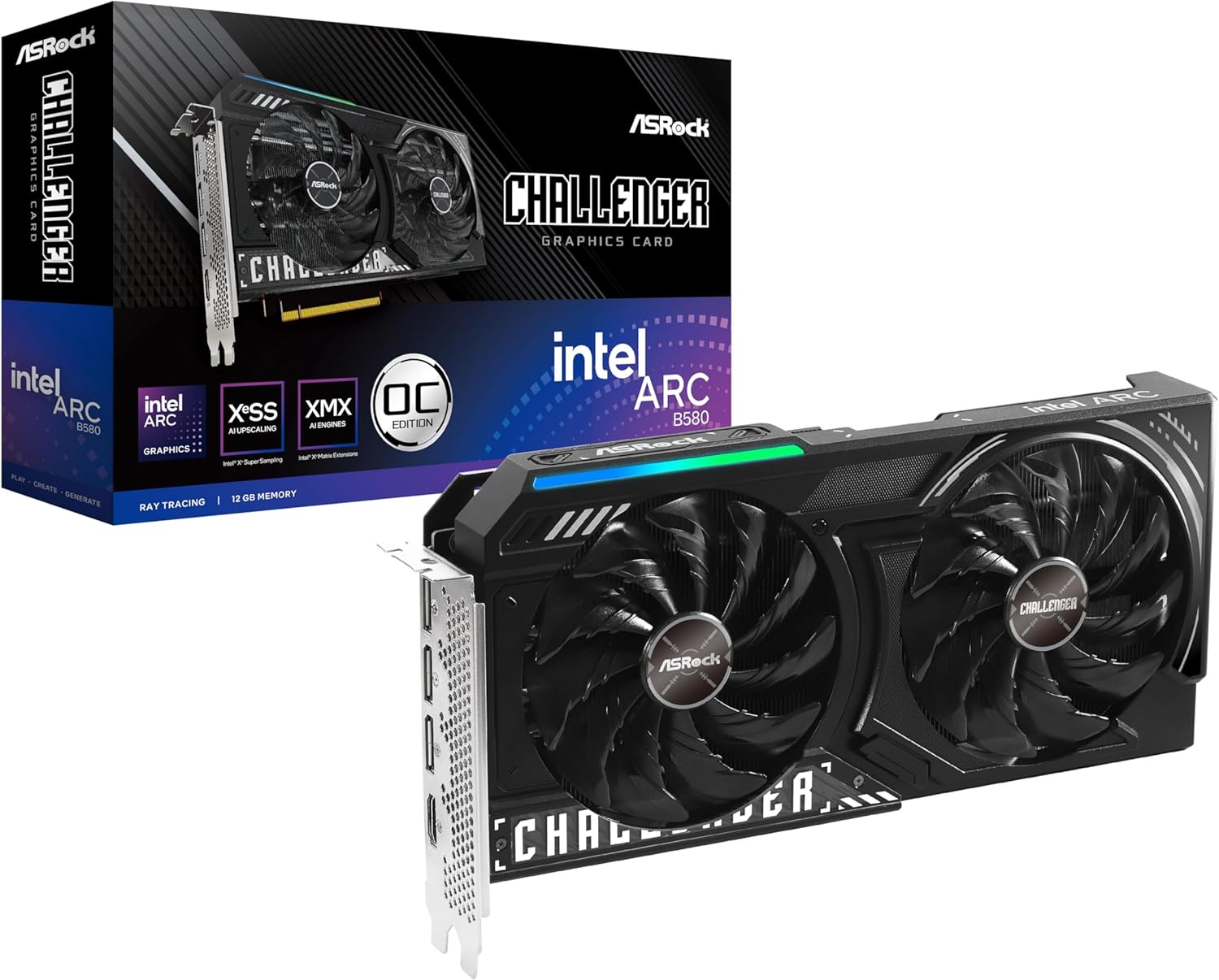

Intel Arc B580 Challenger 12GB GDDR6 OC Graphics Card – 192-Bit, PCIe 4.0, Dual Fan, DP 2.1, HDMI 2.1a

Experience powerful 1440p gaming, AI-accelerated workloads, and modern content creation with the Intel Arc B580 Challenger 12GB OC Graphics Card. Built on the next-generation Intel Xe2-HPG architecture, this card features 20 Xe cores and 160 Xe Matrix eXtension (XMX) engines to deliver high-frame-rate performance and advanced visual fidelity.

Key Features & Performance:

• Memory & Bus: 12GB GDDR6 memory on a 192-bit bus with a 19 Gbps memory clock speed, offering fast bandwidth for high-resolution textures and intensive applications.

• Engine Clock: Factory overclocked to a 2740 MHz GPU clock speed for enhanced out-of-the-box speed.

• Advanced Visual Tech: Features Intel XeSS 2 (Xe Super Sampling) for AI-enhanced upscaling and full DirectX 12 Ultimate support.

• Cooling & Operation: Dual-fan cooling design with striped axial fans for optimal heat dissipation, featuring 0dB Silent Cooling technology that stops the fans under light loads for noiseless operation.

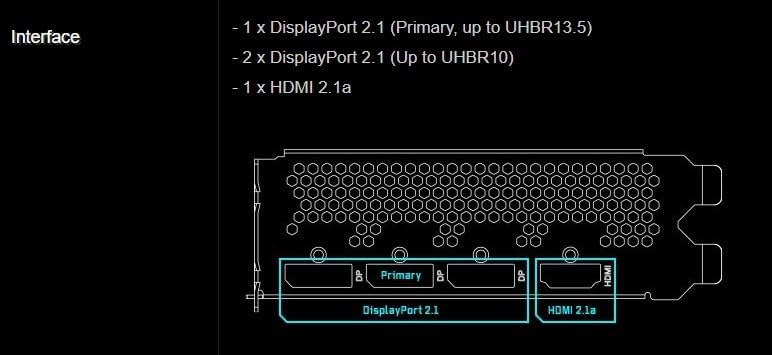

• Display Output: Equipped with DisplayPort 2.1 and HDMI 2.1a ports, supporting maximum display resolutions up to 8K (7680 x 4320).

System & Power Specifications:

• Card Dimensions: 249 mm (L) x 132 mm (W) x 41 mm (H) (2-slot form factor)

• Interface: PCI-Express 4.0

• Power Requirements: 1x 8-pin power connector; 650W minimum recommended power supply
